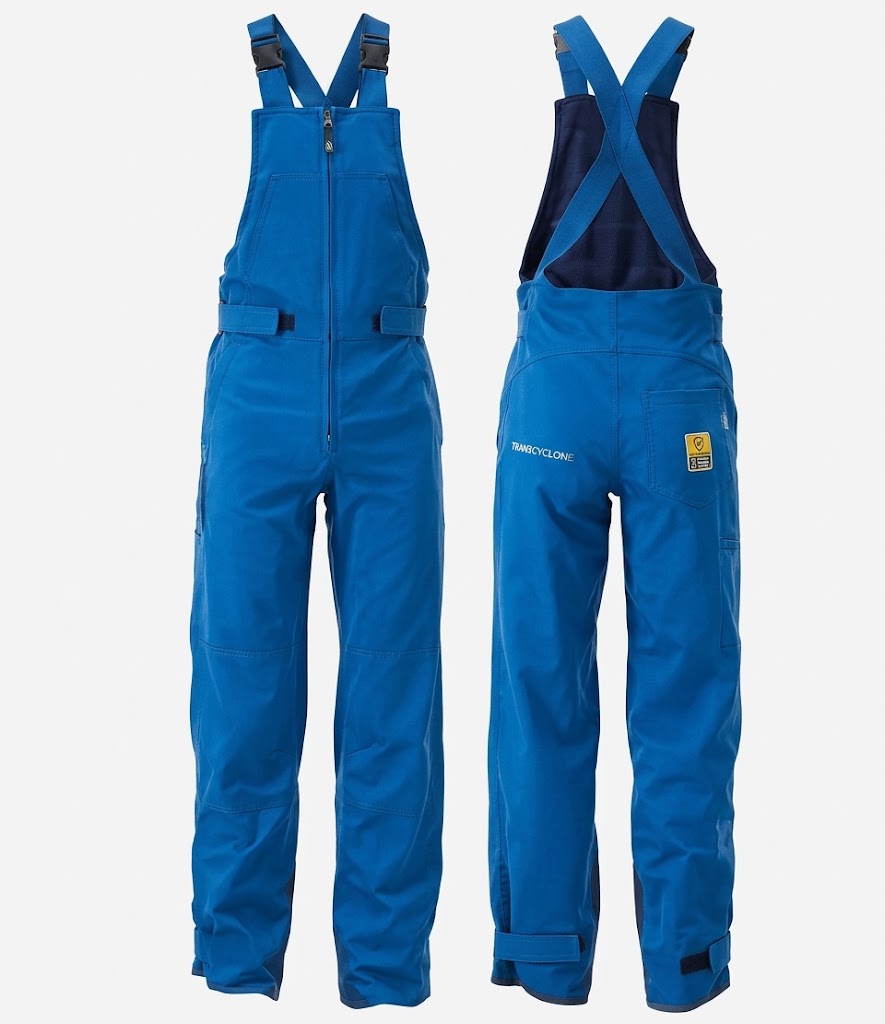

DROMEX ARC HRC4 - 100Cal BIB & BRACE, SMALL - 5 X L

The Dromex DW-ARC100-BP Arc Bib & Brace is a Category 4 arc flash protective garment designed for use in high-risk electrical environments. Manufactured in a sky blue colour and available in sizes S to 5XL, it forms part of the Dromex 100 cal/cm² arc flash protection range and is constructed using Dromex A.P.T™ fabric with a triple-layer design to provide thermal protection against arc flash hazards.

Key Features

• ATPV rating of 100 cal/cm²
• Category 4 arc flash protective garment
•  Dromex A.P.T™ fabric construction
•  Triple-layer design with 14 oz outer layer, 250 gsm meta-aramid FR mat lining and 14 oz inner layer
•  Fabric composition: 88% cotton and 12% nylon
•  Inherent flame-retardant thread throughout
•  Fully triple-needle stitched construction
•  Flame-retardant hook-and-loop adjustment closures
•  Adjustable leg openings designed to fit over work boots
• Arc rating embroidery for product identification
•  Sizes available from S to 5XL
•  Colour: Sky Blue

Benefits

• ✅ Provides very high arc flash protection for electrical applications
• ✅ Designed for substations, switchrooms and power generation environments
• ✅ Durable triple-stitched construction improves service life
• ✅ Adjustable design helps achieve a secure fit over workwear
• ✅ Suitable for integration with other arc-rated protective equipment
• ✅ Cotton-rich fabric assists with wearer comfort during extended use

Specifications

How to Use

1. Inspect the garment before use for damage or contamination.
2. Step into the bib and brace and pull into position.
3. Adjust shoulder braces and waist fittings for a secure fit.
4. Ensure leg openings fully cover and overlap suitable safety footwear.
5. Wear with compatible arc-rated PPE as required by the site risk assessment.
6. Follow employer electrical safety procedures and applicable arc flash protection requirements.
